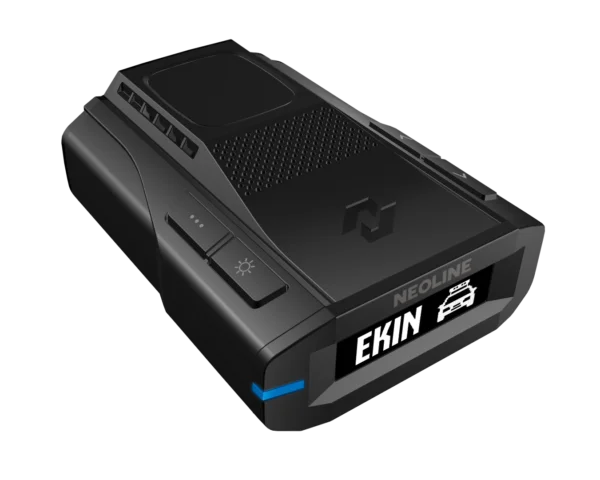

001_6 (1)

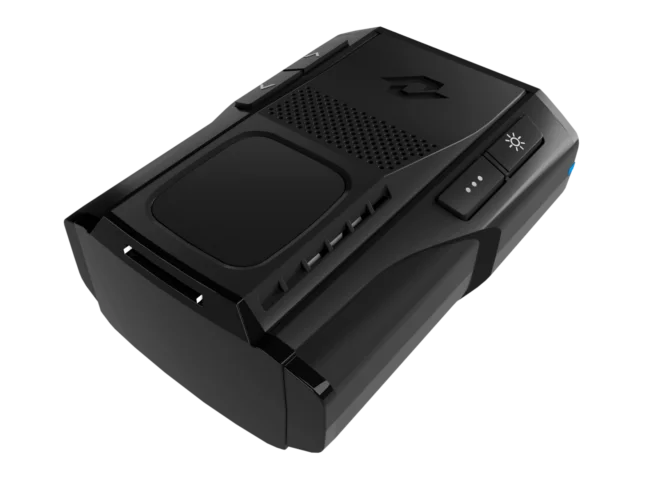

002_6

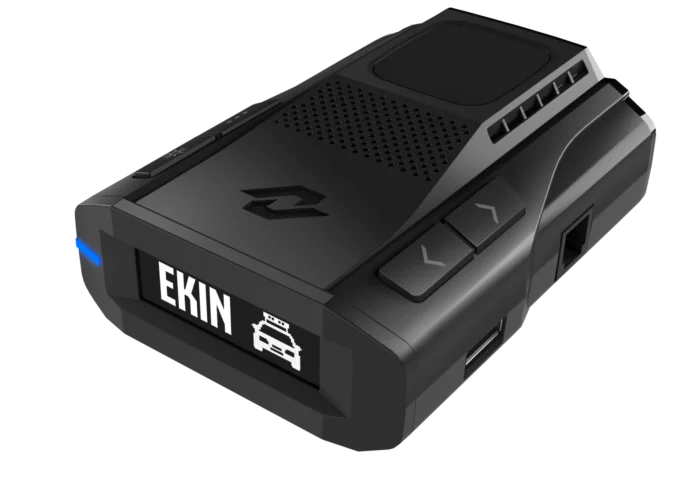

006_4

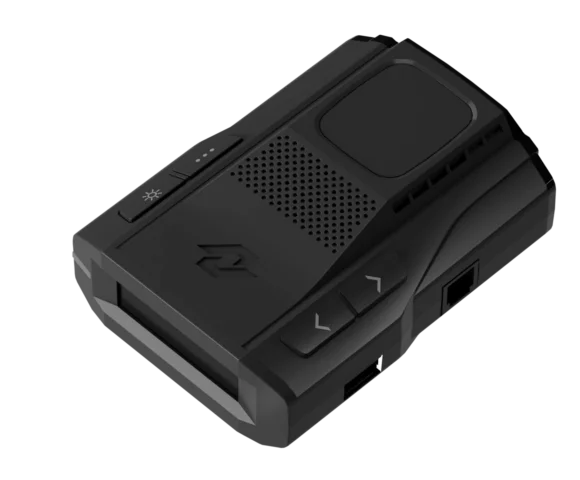

005_5

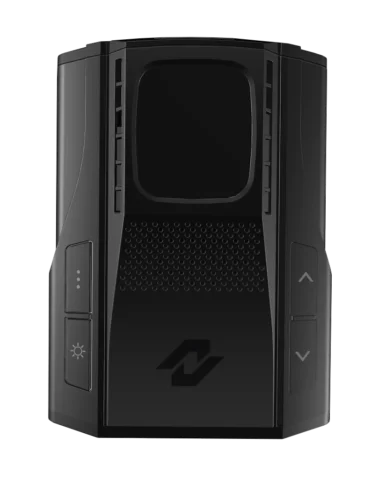

003_4

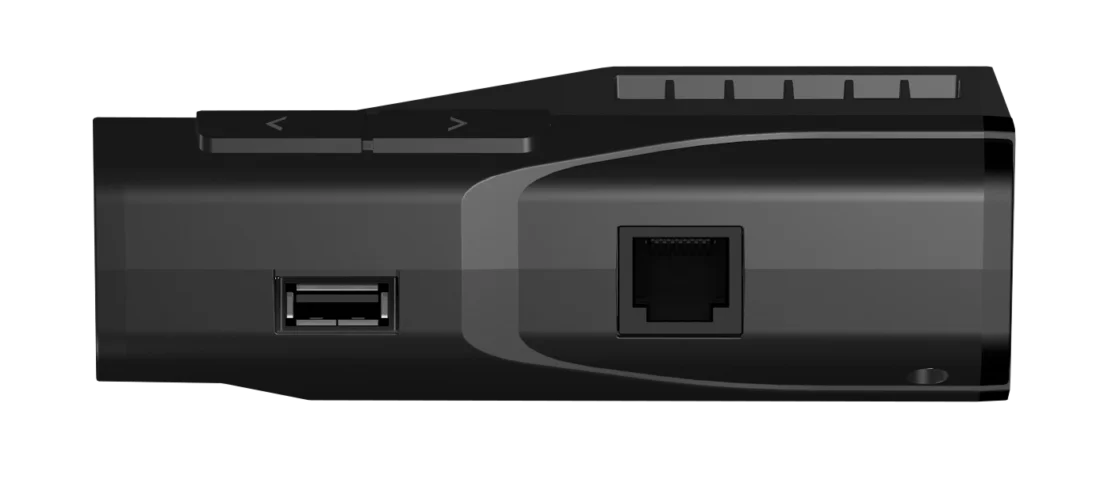

004_3

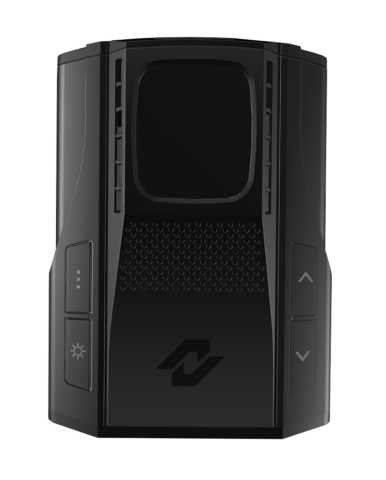

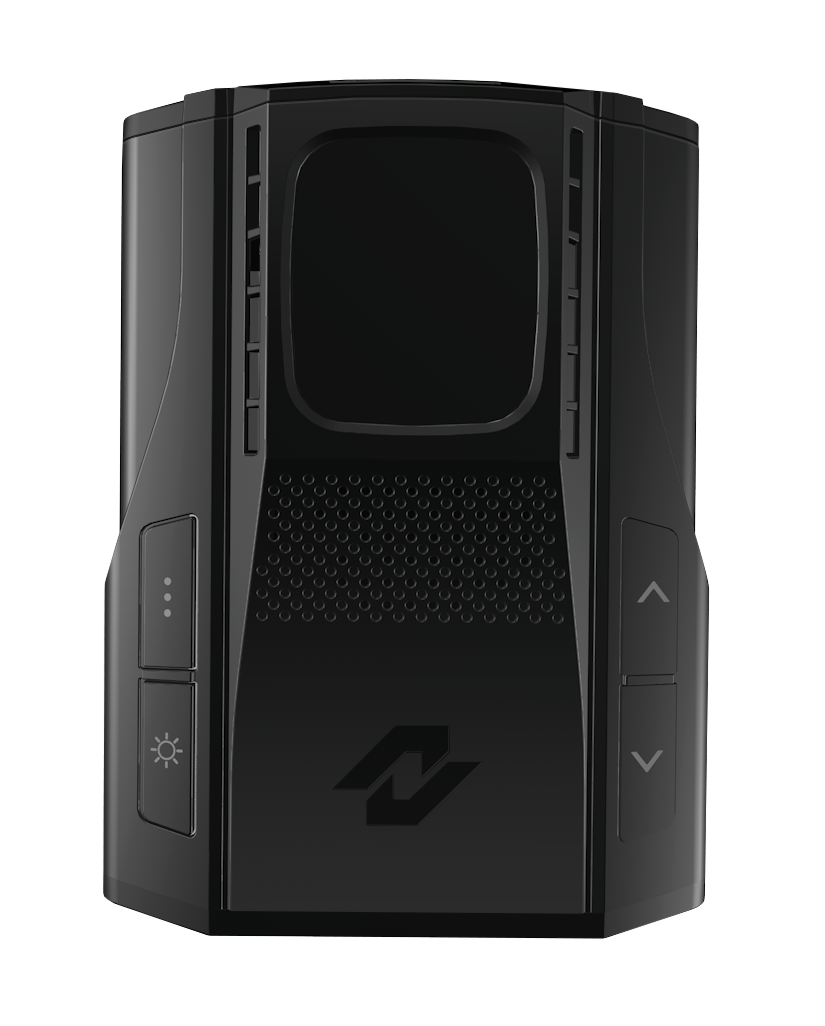

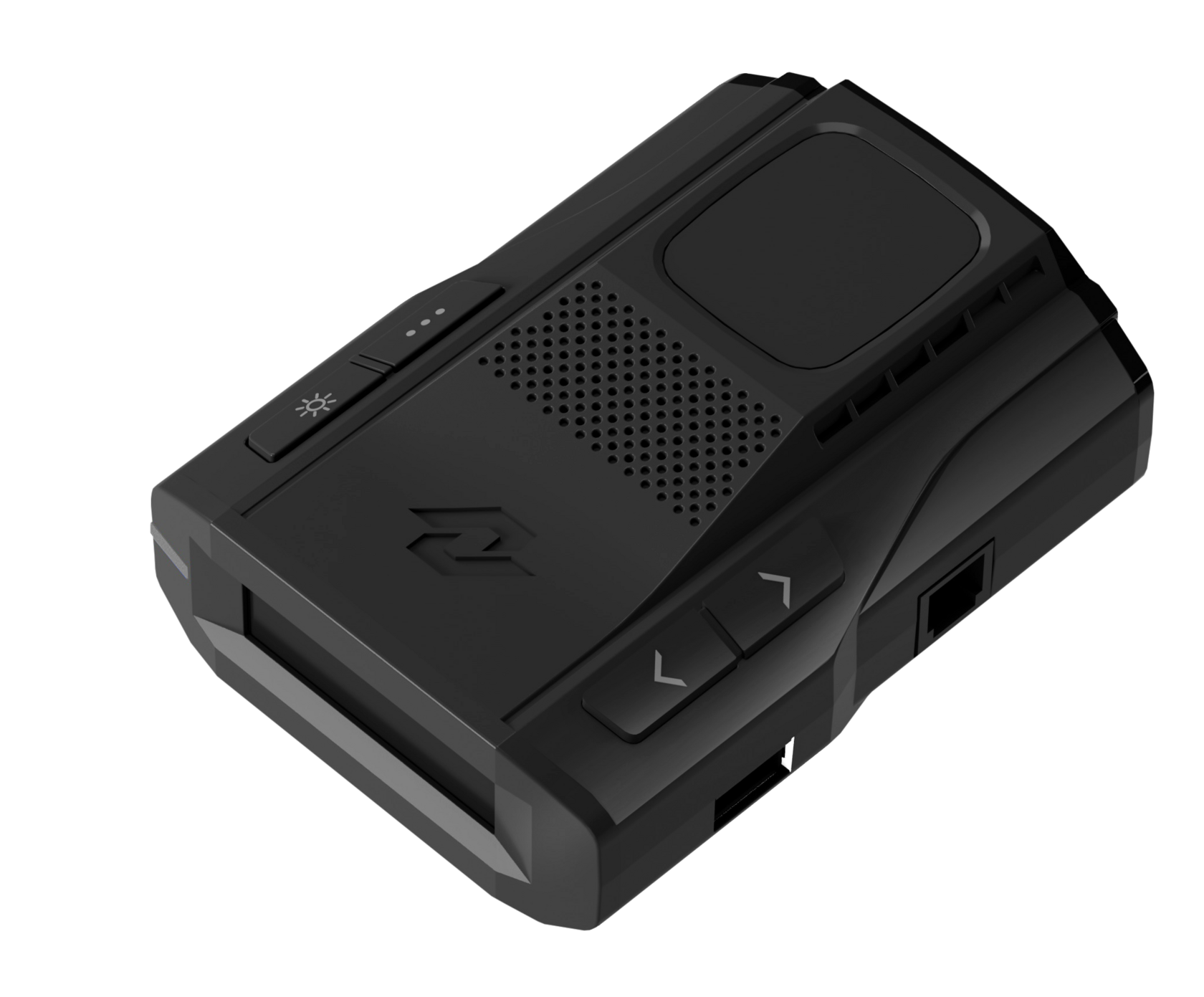

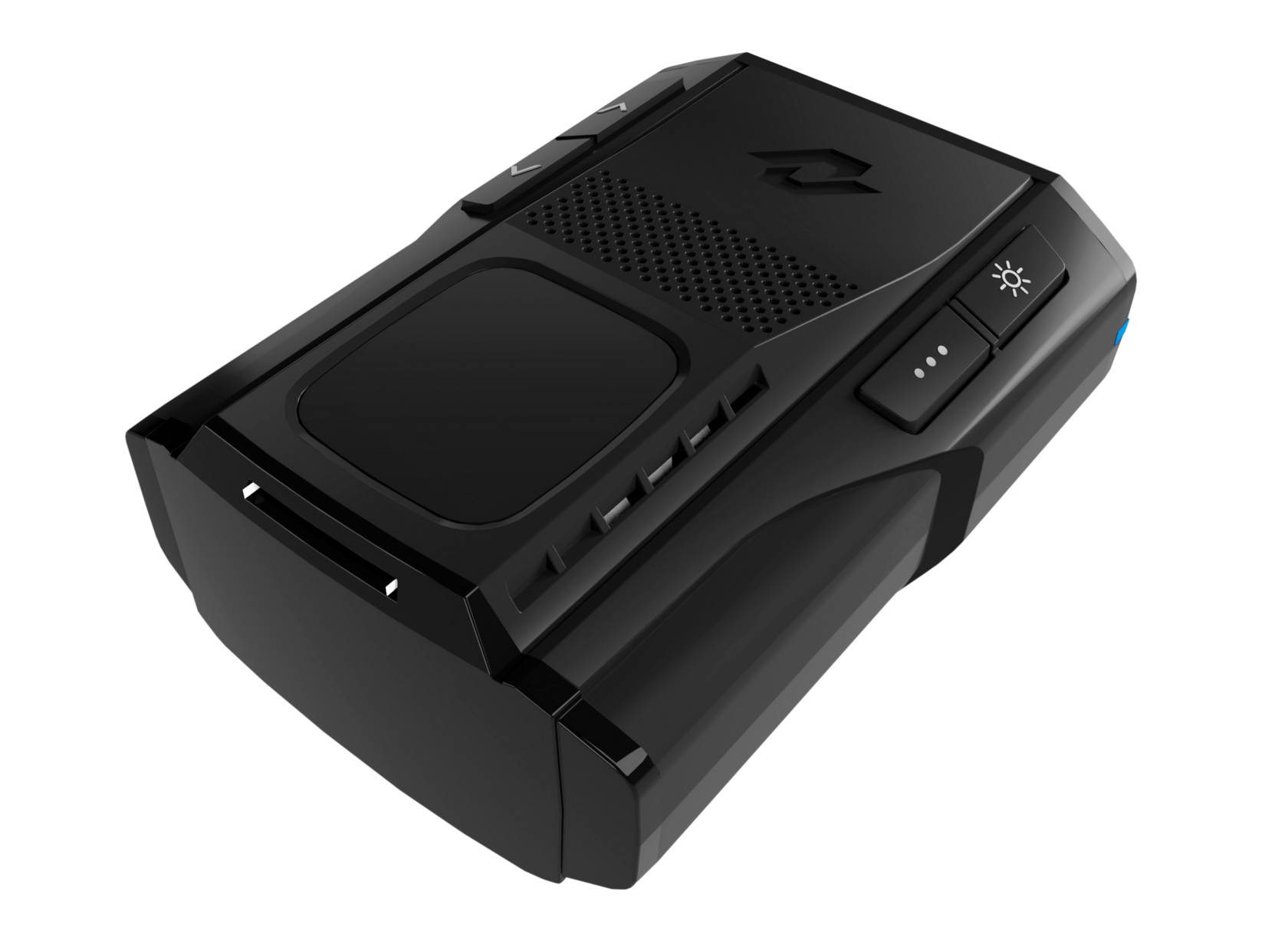

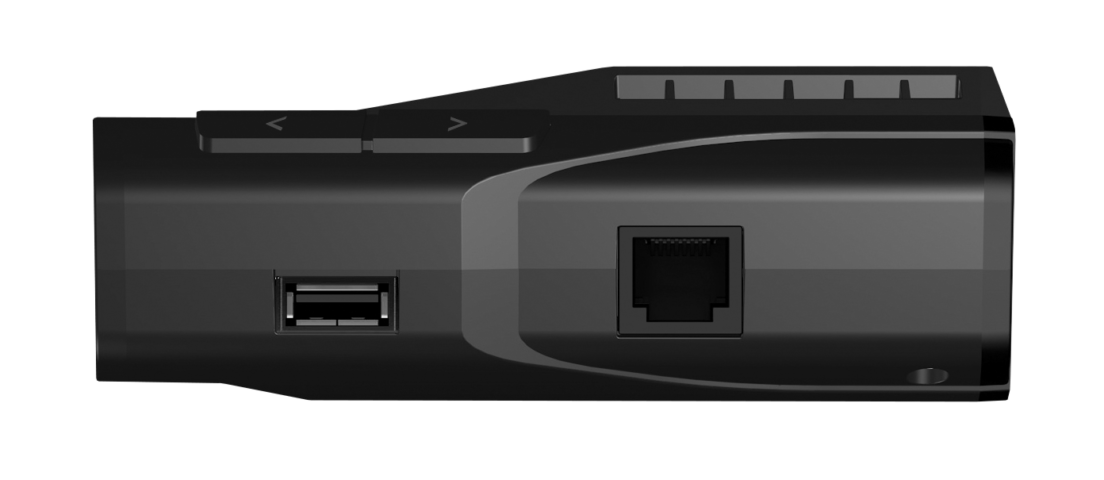

NEOLINE Patrolscan X1

Pre-Order

Introducing the world’s first radar detector capable of detecting 77 GHz mobile police systems like EKIN PATROL, AUTOURAGAN-MS, CYBER SHERIFF, EUNOMIA TRAFFIC and SMART MICRO. This innovative device features W-Band detection, specifically targeting police radar signals at the 77 GHz frequency through advanced digital signature analysis. Equipped with a cutting-edge GPS/GLONASS module, it ensures fast satellite connectivity and provides an extensive database of stationary speed cameras across Europe, alerting users to road traffic cameras, including bus lane and intersection monitoring.

The device prioritizes either the GPS or radar detection (RD) module, offering flexible operation modes, while allowing users to add or delete danger zones. It features a bright white OLED display for easy readability and an LED diode for additional status notifications. Its 77 GHz detection capability is powered by a completely unique radar platform, unmatched by any radar detector on the global market.

Overwiev
Specs and Package
Update

W-band detection (77 GHz)

NEOLINE PATROLSCAN X1 is the world’s first radar detector that is capable of detecting mobile police systems as – EKIN PATROL, AUTOURAGAN-MS, CYBER SHERIFF, SMART MICRO.

The peculiarity of these mobile police radars is that they operate at a frequency of 77 GHz (W-band) and cannot be detected by any other of the existing radar detectors in the world

Unique radar platform EXD-W

Detecting the 77 GHz frequency requires a specialized radar platform that is incompatible with radar detectors currently available in the international market. The EXD-W platform includes a dedicated horn and a 77 GHz signal amplifier, which enables a high detection range for mobile police radars operating in the W-band, even while in motion

Signature technology

The device has a digital frequency analyzer and is capable of accurately recognizing signals in the 77 GHz frequency from police radars. At the same time blocking signals from interference.

The Neoline PATROLSCAN X1 features an advanced GPS/GLONASS module, ensuring quick satellite connection

Global GPS database

Information about radars and cameras from all over the world. It includes more than 150,000 points andupdated each month

Contrast display

The Neoline PATROLSCAN X1 radar detector is designed to keep the screen information readable even in bright sunlight. The large white OLED display shows the most important data: current mode, speed limit for the current road section, distance to the GPS point, and time.

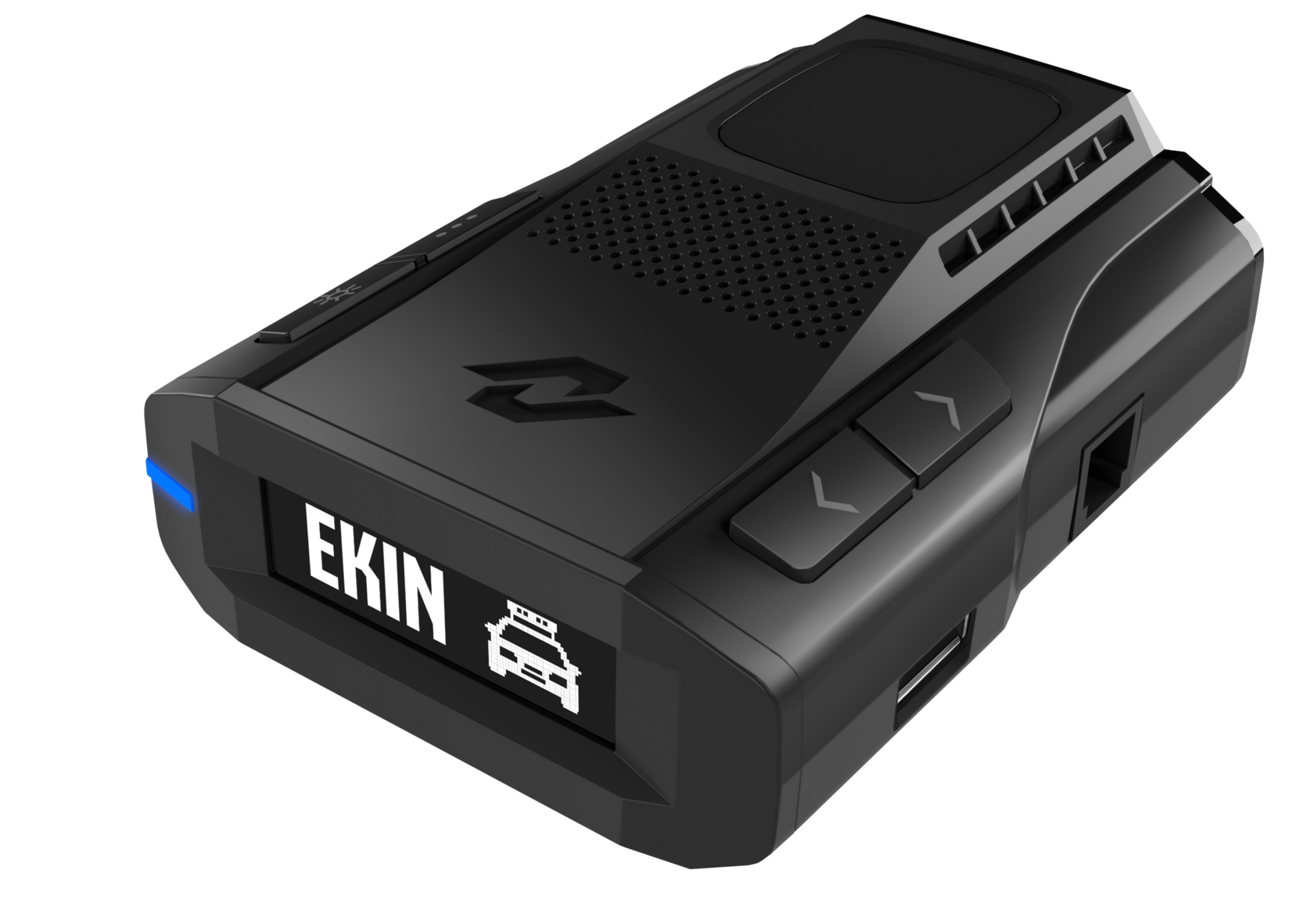

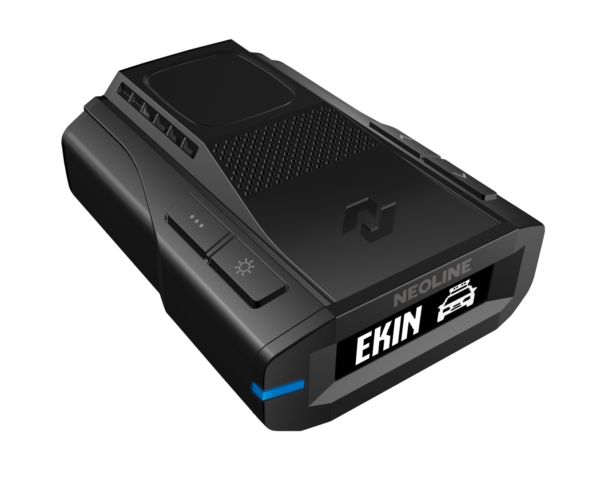

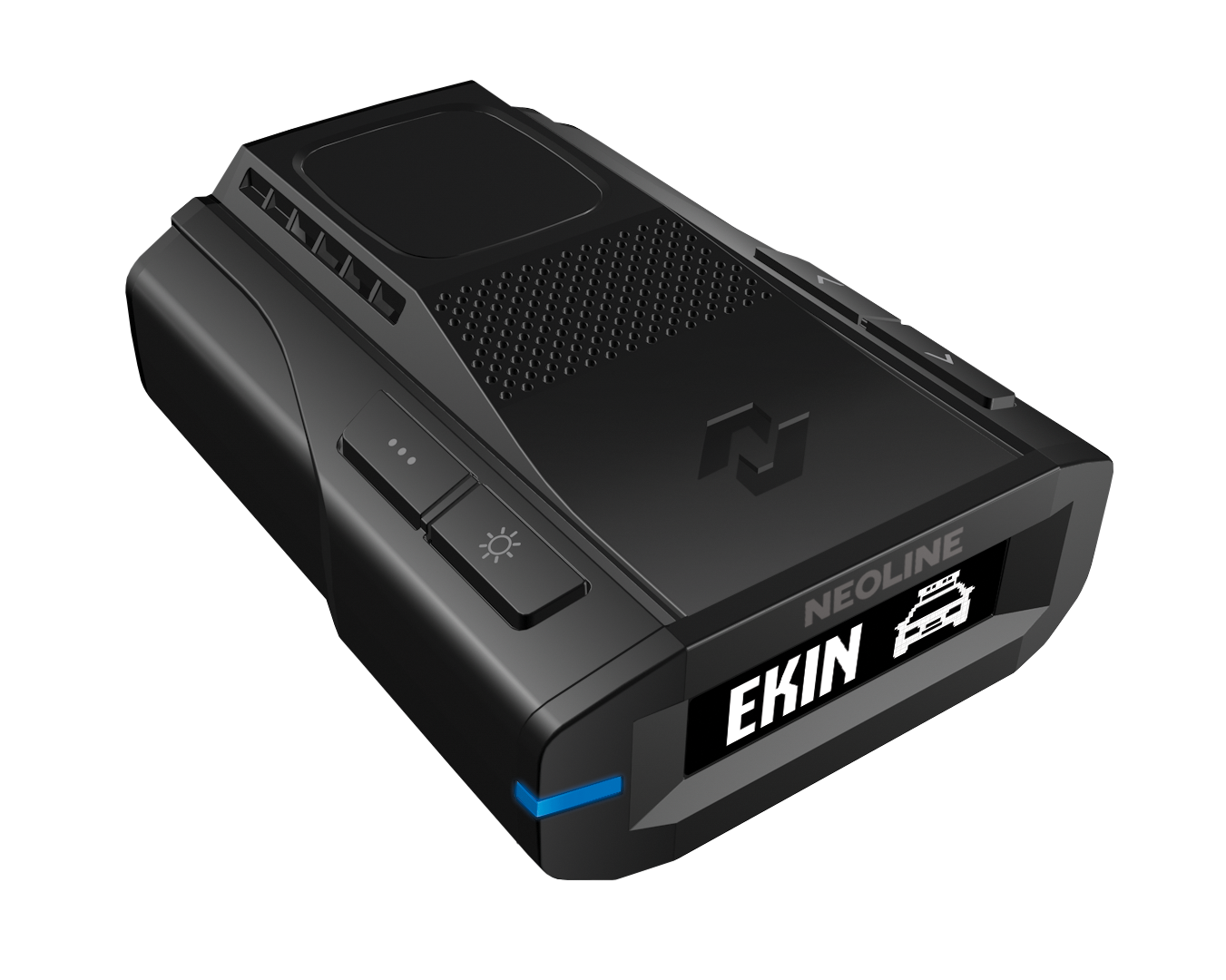

For driver convenience, a diode on the left side of the screen flashes when detecting an EKIN PATROL radar. The brightness of the diode can be adjusted in the device menu

Wide range of sound volume

The device has a speaker with eight adjustable volume levels. With PATROLSCAN X1, you can choose the optimum sound level so that alerts can be clearly heard even with windows open or loud music in the car

Technical information

  • W-Band detection (77Ghz frequency)
  • Digital signature analysis of police radar in the 77Ghz
  • GPS/Glonass database of stationary speed cameras across Europe
  • Alerts of cameras recording road traffic violations: bus lane, intersection cameras
  • Priority for GPS or RD module
  • Add/delete danger zones
  • White OLED display
  • LED diode
  • Operating temperature: -10 C° – + 60 C°
  • Input voltage: DC12-24V
  • Power consumption: 240-600 mA
  • Neoline PatrolScan X1
  • Magnetic holder with 3M tape
  • Holder with suction cups
  • Additional 3M tape stickers
  • Power cable for connection to car power socket with on/off button and USB socket (DC 12-24 V)
  • Manual
